Walk onto any active manufacturing floor, processing plant, or oil rig, and you will likely feel it before you see it: vibration. Heavy machinery, reciprocating pumps, and high-velocity flow systems create a rhythmic, constant shaking that defines industrial environments.
While this vibration is often an accepted part of the job for operators, it is a silent killer for the sensitive instrumentation responsible for monitoring the process.
Pressure gauges, thermometers, and sensors are precision instruments. Inside their durable casings, they often rely on delicate mechanical linkages, gears, and hairsprings to provide accurate readings. When subjected to constant vibration or sudden shock, these internal components wear down rapidly.
The pointer flutters, making it impossible to read, or worse, the movement destroys the gear teeth, rendering the instrument useless.
Replacing a gauge might seem like a minor expense, but the cumulative cost of frequent replacements, combined with the risk of inaccurate data and unscheduled downtime, creates a significant financial drain. Fortunately, instrument failure isn’t inevitable.
By understanding the nature of the stress and implementing the right protective measures, you can significantly extend the lifespan of your equipment.
Understanding the Damage: Vibration vs. Pulsation
Before you can solve the problem, you have to diagnose the specific threat. In industrial settings, mechanical stress usually comes in two distinct forms: vibration and pulsation.
Vibration is mechanical oscillation. It usually originates from the equipment the gauge is mounted on, such as a compressor engine or a vibrating pump. This physical shaking rattles the components inside the case.
Pulsation, on the other hand, occurs within the process media itself. It involves rapid, rhythmic pressure spikes and drops—often caused by the opening and closing of valves or the stroke of a piston pump. This “water hammer” effect slams the internal sensing element (like a Bourdon tube) back and forth.
Both forces result in the same outcome: a pointer that won’t sit still, followed by premature failure. Identifying which force is dominant will help you choose the right defense strategy.
The First Line of Defense: Liquid Filling
One of the most effective and common solutions for high-vibration environments is changing the medium inside the instrument case. Standard gauges are “dry,” meaning the case is filled with air. This offers zero resistance to internal movement.
A liquid filled pressure gauge replaces that air with a viscous fluid, typically glycerin or silicone oil. This fluid acts as a damper for the internal mechanism. It creates resistance against the moving parts, effectively lubricating the gears and cushioning the delicate links against the constant shaking.
The result is immediate visual stability. The pointer stops fluttering, allowing operators to get an accurate reading without guessing. Beyond readability, the liquid protects the internals from corrosion and prevents condensation from forming behind the lens.
For most general applications where vibration is present, switching to a liquid-filled option is the simplest, most cost-effective upgrade you can make.
Tackling Pressure Spikes with Snubbers
If your primary issue is pulsation rather than mechanical vibration, liquid filling might not be enough. When the process fluid itself is hammering the instrument, you need to restrict the flow before it hits the sensing element.
This is where pressure snubbers come into play. A snubber is a small porous filter or piston mechanism installed between the process line and the gauge.
It restricts the speed at which the fluid can enter the instrument. By smoothing out the pressure spikes and drops, the snubber ensures that the gauge sees a steady average pressure rather than the violent peaks and valleys of the cycle.
Think of a snubber as a gatekeeper. It allows the pressure to register, but it stops the shock wave from slamming into the Bourdon tube. For hydraulic systems or reciprocating pumps, a snubber is often a mandatory accessory for longevity.

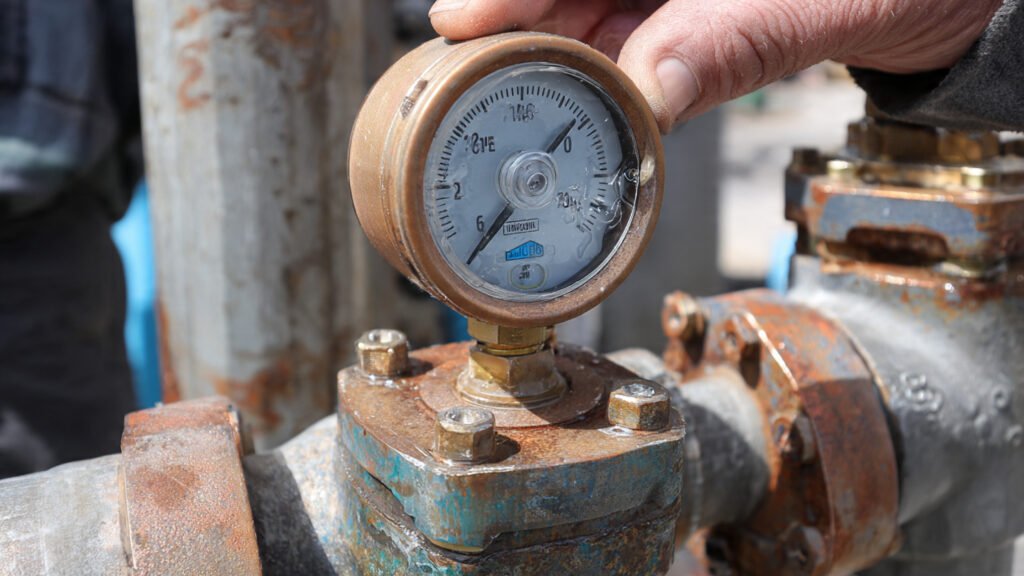

Remote Mounting: Distance is Safety
Sometimes, the vibration on a piece of machinery is so violent that no amount of internal dampening or robust construction can save the instrument. In these extreme cases, the best strategy is isolation.
If a pump is shaking effectively enough to loosen bolts, it shouldn’t have a precision instrument mounted directly to its casing. Instead, engineers use a capillary line—a thin, flexible tube—to mount the gauge remotely.
By mounting the instrument on a stable wall or a separate stanchion a few feet away from the vibrating equipment, you sever the mechanical link between the source of the shock and the instrument. The flexible capillary tube transmits the pressure signal accurately but absorbs the mechanical energy.
This method can transform a gauge that lasts two weeks into one that lasts two years.
Selecting the Right Materials
Durability isn’t just about dampening; it is also about construction quality. In shock-prone settings, the physical casing of the instrument takes a beating. A plastic lens or a lightweight casing may crack under stress or fatigue over time.
For harsh environments, specifying instruments with stainless steel casing and shatterproof safety glass (or polycarbonate lenses) provides an extra layer of structural integrity. Furthermore, consider the socket connection.
In high-vibration zones, a welded case-to-socket connection is often superior to a screwed connection, which can loosen over time and create leak paths.
The Bottom Line on Reliability
Equipment failure in shock-prone settings is often treated as a nuisance, but it should be treated as a solvable engineering challenge. When a gauge fails, you lose visibility into your process. That blindness can lead to safety hazards or quality control issues that far outweigh the cost of the hardware.
By correctly identifying the source of the stress and applying the right mitigation strategies—whether that is installing a liquid filled pressure gauge, adding a snubber, or moving the instrument to a safer location—you protect your investment.
A robust instrumentation strategy keeps your maintenance team focused on optimizing production rather than constantly swapping out broken dials. Regular maintenance can save your money.
